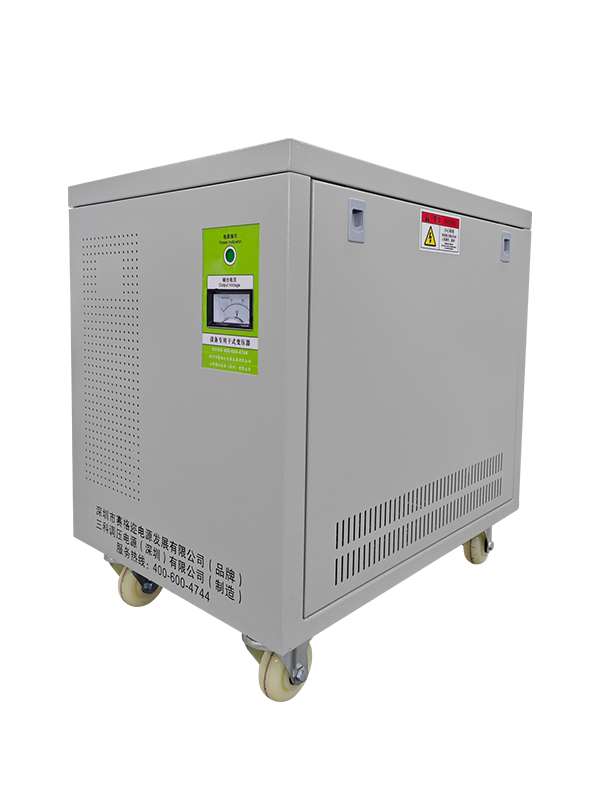

Product Overview.

SG series autotransformers are adapted to produce transformers with power between 1KVA - 1500KVA, autotransformer output and input voltage share a coil special transformer, step-up and step-down are realized with different tapping methods. The autotransformer has only one winding, when used as a step-down transformer, part of the line turns are drawn from the winding as the secondary winding, when used as a step-up transformer, part of the line turns are drawn from the winding as the primary winding.

Applicable Places:

CNC numerical control machine tools, imported machinery and equipment, printing equipment, automation equipment, testing and aging, tunnels, industrial and mining, railroads and other places and equipment using electricity.

Technical parameters:

◆Product capacity: 1KVA~800KVA

◆Input voltage: 380V 415V (can be customized according to customer requirements)

◆Output voltage: 200V 220V 380V (can be customized according to customer requirements)

◆Frequency: 50Hz~60Hz

◆Phase number: 3 phases

◆Efficiency：＞98%

◆Insulation grade: H class

◆Waveform distortion: no additional waveform distortion

◆Electrical strength: 1500V/1min

◆Insulation resistance: ≥5mΩ

◆Insulation resistance: ≥6mΩ

◆Insulation resistance: ≥7mΩ

◆Insulation resistance: ≥8mΩ

Autotransformer schematic diagram
